Items Rounded to full box quantities.

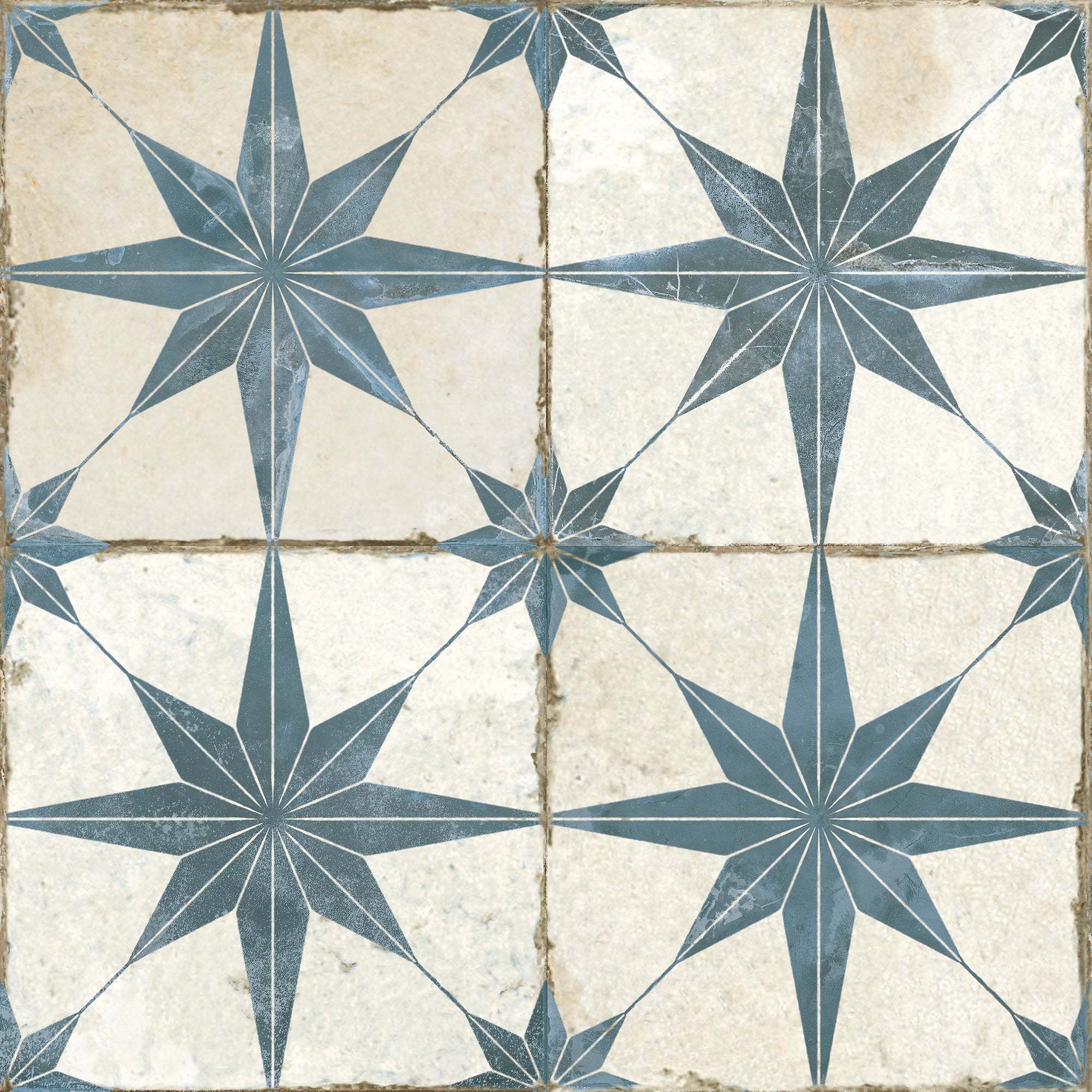

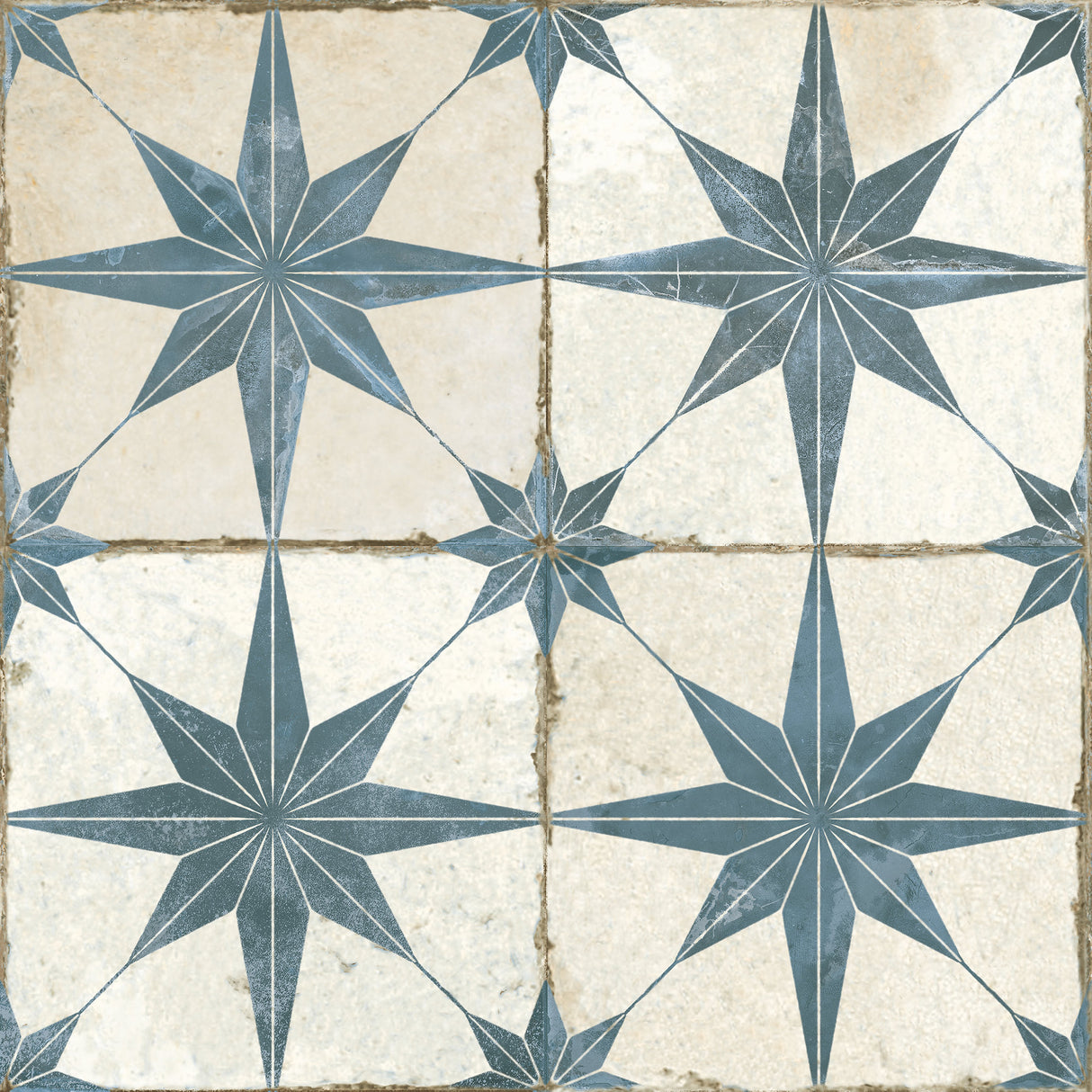

Peronda FS Star Blue Installation Photo:
Peronda FS Star Blue Installation Photo:
Peronda FS Star Technical Data:
Model: |
FS STAR |
Color: |

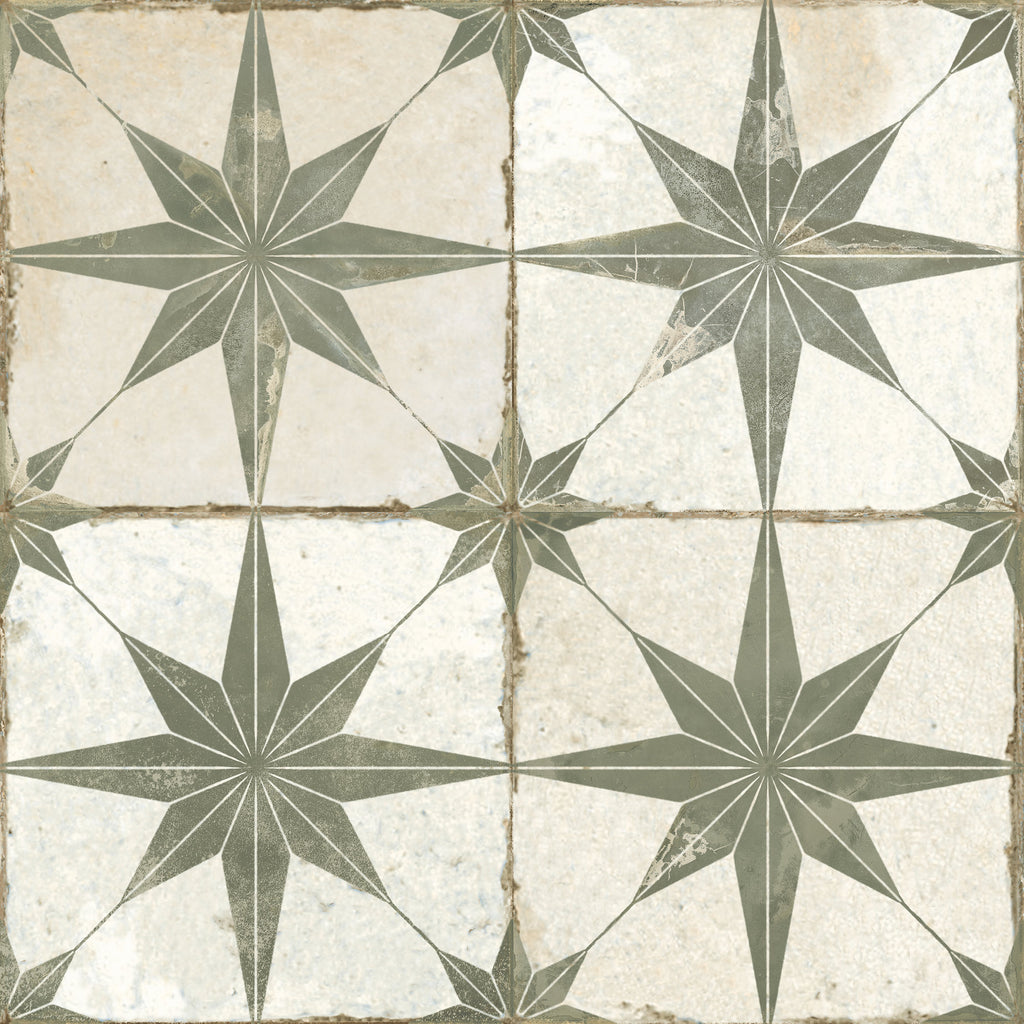

Blue, Sage |
Size: |
17x17 |
Finish: |
Natural |
Body Type: |
FLOOR TILE - GROUP BIIa GL - GLAZED Ceramic Tile |
|
Water absorption |
|
EN ISO-10545-3 |
Water absorption |
3% < E < 6% |
|
Dimensional characteristics |
|
EN ISO-10545-2 |
Surface quality |
> 95% |
EN ISO-10545-2 |
Curvature flatness |
± 0,5 % / ± 2,0 mm |
EN ISO-10545-2 |
Thickness |
± 5% / ± 0,5 mm |
EN ISO-10545-2 |
Length and Width |
± 0,6 % / ± 2,0 mm |
EN ISO-10545-2 |
Rectangularity |
± 0,5% / ± 2,0 mm |
EN ISO-10545-2 |
Straightness of sides |
± 0,5 % / ± 1,5 mm |
|
Mechanical characteristics |
|
EN ISO 10545-11 |
Crazing resistance |
Pass |
EN ISO 10545-9 |
Thermal shock resistance |
Pass |
EN ISO-10545-4 |
Breaking strength |
> 1000 N |
EN ISO-10545-4 |
Modulus of rupture |
> 22 N/mm2 |
|
Surface characteristics |
|
EN ISO 10545-7 |
Surface abrasion resistance |
4 |
EN ISO 10545-7 |
Visible failure at No of revolutions |
2100 rev |
EN-101 |
Surface scratch resistance |
6 |
|
Chemical characteristics |
|
EN ISO-10545-13 |
High concentrations of acids and alkalis |
HA/HA/HA |
EN ISO-10545-13 |
Low concentrations of acids and alkalis |
LA/LA/LA |
EN ISO-10545-13 |
Household chemicals and swimming pool salts |
A/A |
EN ISO-10545-14 |
Stain resistance |
5/-/5/5 |
|
Non-slip characteristics |
|
ANSI A137 |
Dynamic coeficient of friction (DCOF) |
>0,42 |
BS-7976-2 |
Slip resistance test (PTV) - wet conditions |
+36 |
DIN-51130 |
Critical angle (footwear) |
R-9 |
UNE-ENV-12633 |
Slip resistance (pendulum test) |
1 |
