Items Rounded to full box quantities.

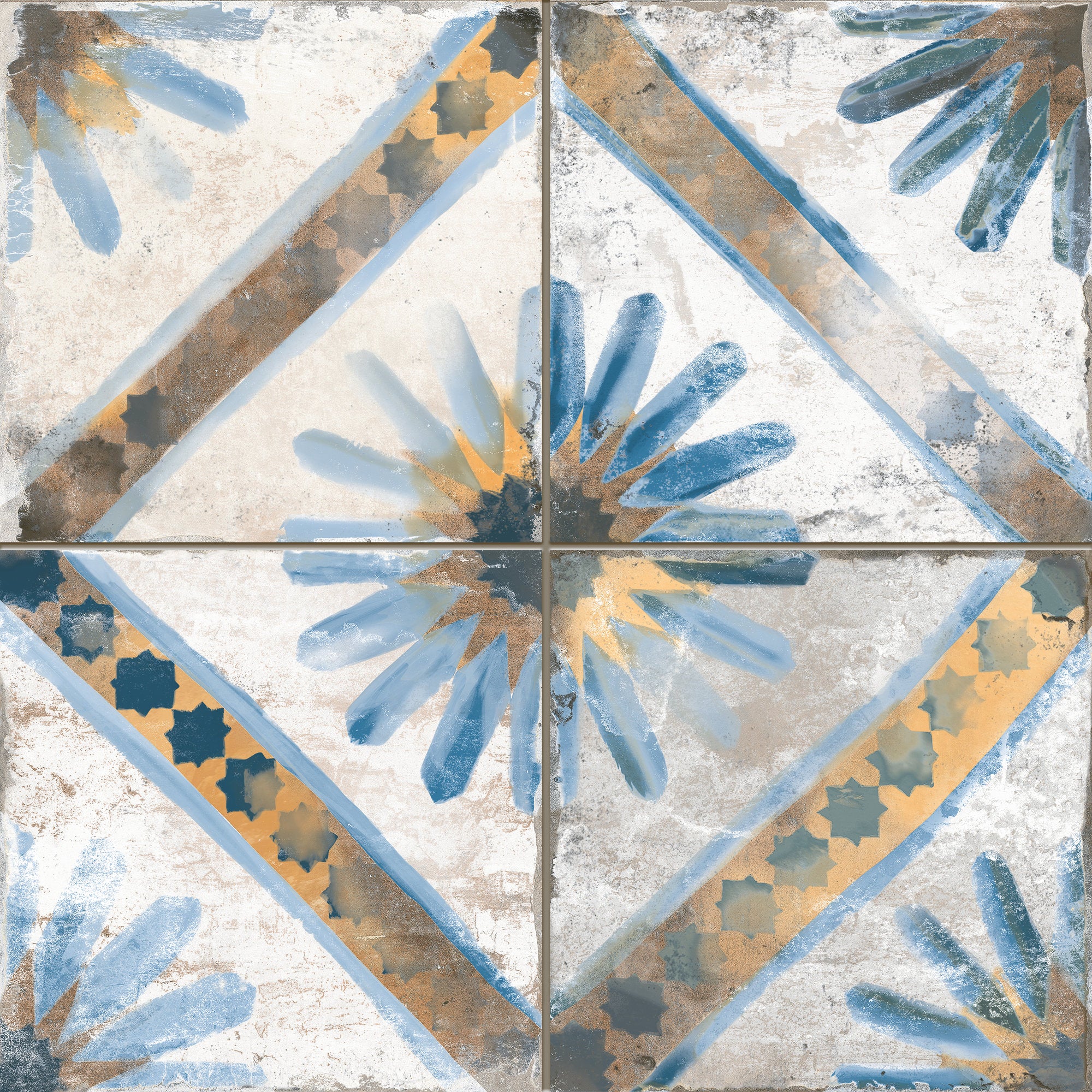

Peronda FS Marrakech Blue Installation Photo:
Peronda FS Marrakech Blue Installation Photo:

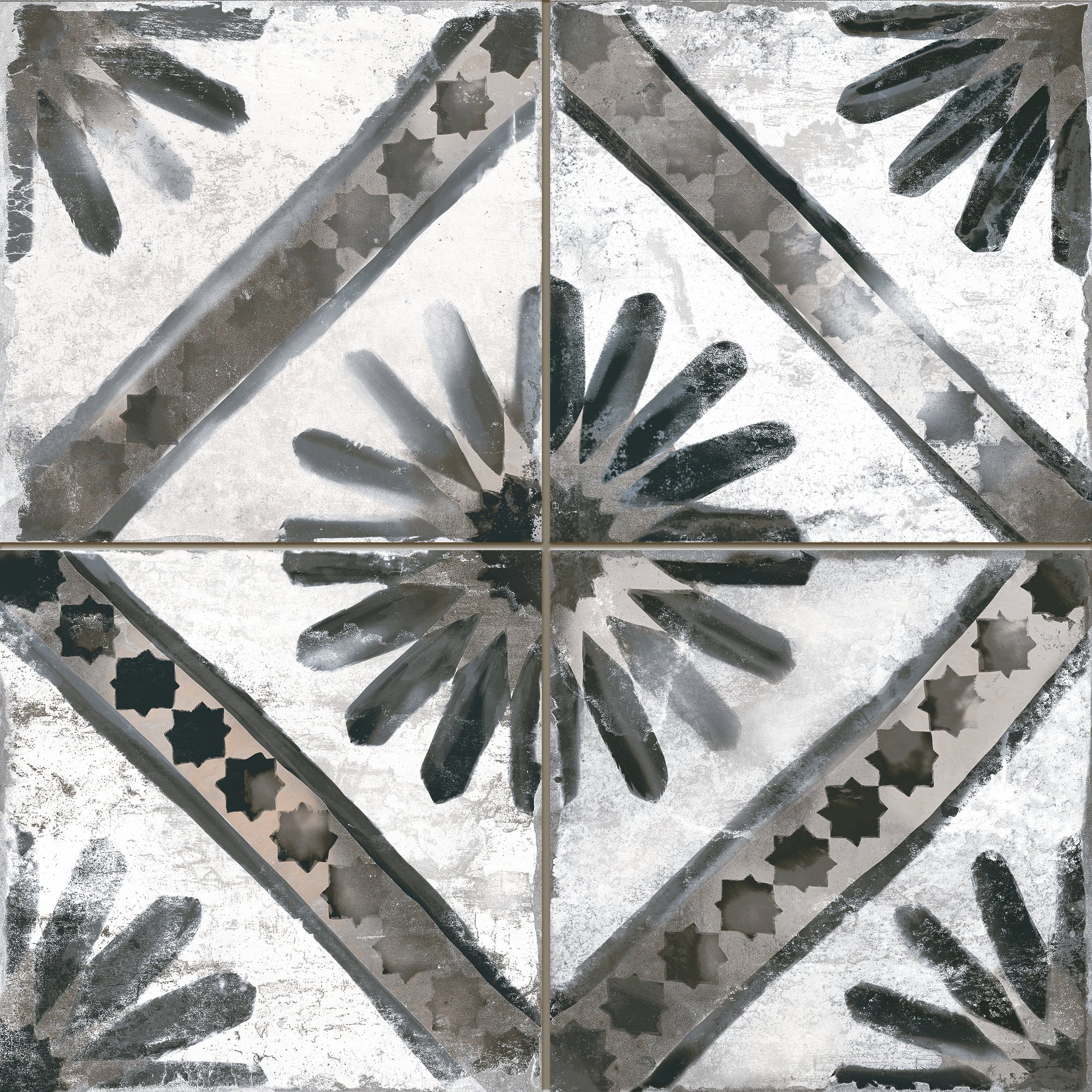

Peronda FS Marrakech Grey Installation Photo:
Peronda FS Marrakech Technical Data:
| Model: |
FS MARRAKECH |
| Color: |
Blue, Grey |
| Size: |
17x17 |
| Finish: |
Natural |
| Material: |
PAVIMENTO GRES - GRUPO BIIa - |
|
Water absorption |
|
| EN ISO-10545-3 |
Water absorption |
3% < E < 6% |
|
Dimensional characteristics |
|
| EN ISO-10545-2 |
Surface appearance |
> 95% |
| EN ISO-10545-2 |
Curvature |
± 0,5 % / ± 2,0 mm |
| EN ISO-10545-2 |
Thickness |
± 5% / ± 0,5 mm |
| EN ISO-10545-2 |
Length |
± 0,6 % / ± 2,0 mm |
| EN ISO-10545-2 |
Squareness |
± 0,5% / ± 2,0 mm |
| EN ISO-10545-2 |
Straightness of sides |
± 0,5 % / ± 1,5 mm |
|
Mechanical characteristics |
|
| EN ISO 10545-11 |
Resistance to crazing |
Cumple |
| EN ISO 10545-9 |
Thermal shock resistance |
Cumple |
| EN ISO-10545-4 |
Breaking strength |
> 1000 N |
| EN ISO-10545-4 |
Bending strength |
> 22 N/mm2 |
|
Surface characteristics |
|
| EN ISO 10545-7 |
Wear resistance (PEI rating) |
4 |
| EN ISO 10545-7 |
Visible effect at revolutions |
6000 rev. |
| EN-101 |
Scratch resistance |
6 |
|
Chemical characteristics |
|
| EN ISO-10545-13 |
Acids & alkalis at high concentrations |
GHA/GHA/GHA |
| EN ISO-10545-13 |
Acids & alkalis at low concentrations |
GLA/GLA/GLA |
| EN ISO-10545-13 |
Household cleaning products |
GA/GA |
| EN ISO-10545-14 |
Stain resistance |
5/-/5/5 |
|
Non-slip characteristics |
|
| ANSI A137 |
Stain resistance |
>0,42 |
| BS-7976-2 |
Slip resistance test (PTV) - wet conditions |
+36 |
| DIN-51130 |
Critical slip angle, shod foot on sloping ramp |
R-9 |
| UNE-ENV-12633 |
Critical slip angle, shod foot on sloping ramp |
1 |
